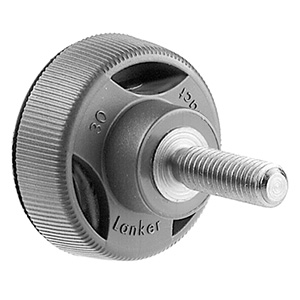

Riffelschraube mit Deckel
aus PA 6
anthrazitgrau
mit Gewindestift aus Stahl verzinkt
rostfreie Ausführung auf Anfrage
Filter Resultate sortieren
Zurücksetzten Anwenden

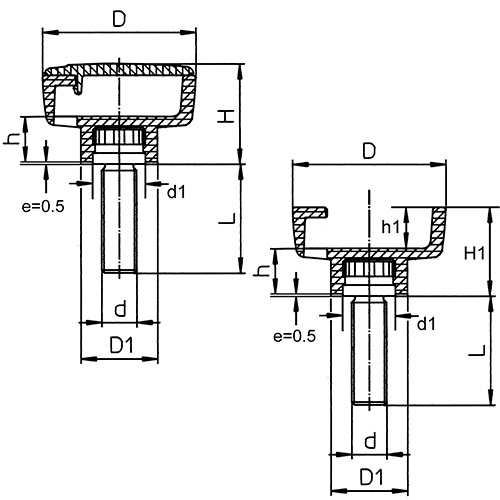

Nr. | Artikel | D | d | D1 | d1 | H | h | H1 | h1 | L | Gew. | Stückzahl |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
10.6601 | 2-6620- 87-M 4x15-GS | 20 | M 4 | 11.0 | 7 | 15.0 | 9.0 | 13 | 4.0 | 15 | 5 | |
10.6602 | 2-6620- 114-M 4x20-GS | 20 | M 4 | 11.0 | 7 | 15.0 | 9.0 | 13 | 4.0 | 20 | 6 | |
10.6603 | 2-6620- 509-M 5x10-GS | 20 | M 5 | 11.0 | 8 | 15.0 | 9.0 | 13 | 4.0 | 10 | 6 | |
10.6604 | 2-6620- 95-M 5x18-GS | 20 | M 5 | 11.0 | 8 | 15.0 | 9.0 | 13 | 4.0 | 18 | 7 | |
10.6605 | 2-6620- 115-M 5x25-GS | 20 | M 5 | 11.0 | 8 | 15.0 | 9.0 | 13 | 4.0 | 25 | 9 | |
10.6610 | 2-6625- 509-M 5x10-GS | 25 | M 5 | 13.0 | 8 | 18.0 | 8.0 | 15 | 4.2 | 10 | 9 | |
10.6611 | 2-6625- 513-M 6x10-GS | 25 | M 6 | 13.0 | 10 | 18.0 | 8.0 | 15 | 4.2 | 10 | 10 | |
10.6612 | 2-6625- 96-M 6x20-GS | 25 | M 6 | 13.0 | 10 | 18.0 | 8.0 | 15 | 4.2 | 20 | 12 | |
10.6613 | 2-6625- 106-M 6x28-GS | 25 | M 6 | 13.0 | 10 | 18.0 | 8.0 | 15 | 4.2 | 28 | 13 | |
10.6620 | 2-6630- 513-M 6x10-GS | 30 | M 6 | 15.0 | 10 | 21.0 | 11.0 | 18 | 7.0 | 10 | 12 | |
10.6621 | 2-6630- 96-M 6x20-GS | 30 | M 6 | 15.0 | 10 | 21.0 | 11.0 | 18 | 7.0 | 20 | 14 | |
10.6622 | 2-6630- 106-M 6x28-GS | 30 | M 6 | 15.0 | 10 | 21.0 | 11.0 | 18 | 7.0 | 28 | 15 | |
10.6623 | 2-6630- 97-M 8x25-GS | 30 | M 8 | 15.0 | 12 | 21.0 | 11.0 | 18 | 7.0 | 25 | 21 | |
10.6624 | 2-6630- 105-M 8x32-GS | 30 | M 8 | 15.0 | 12 | 21.0 | 11.0 | 18 | 7.0 | 32 | 23 | |
10.6630 | 2-6635- 512-M 8x12-GS | 35 | M 8 | 17.5 | 12 | 24.0 | 10.5 | 20 | 9.5 | 12 | 20 | |
10.6631 | 2-6635- 97-M 8x25-GS | 35 | M 8 | 17.5 | 12 | 24.0 | 10.5 | 20 | 9.5 | 25 | 24 | |
10.6632 | 2-6635- 118-M 10x30-GS | 35 | M 10 | 17.5 | 14 | 24.0 | 10.5 | 20 | 9.5 | 30 | 33 |
